Building the Glen-L HOT ROD
Building a Chevrolet 355 CID performance marine engine - Page 3

Home Bottom Previous Page 1   2   (3)

Click to enlarge.

The Hardin Marine flame arrestor uses a K&N air filter capable of flowing 30% more air than a stock flame arrestor.

Click to enlarge.



Click to enlarge.

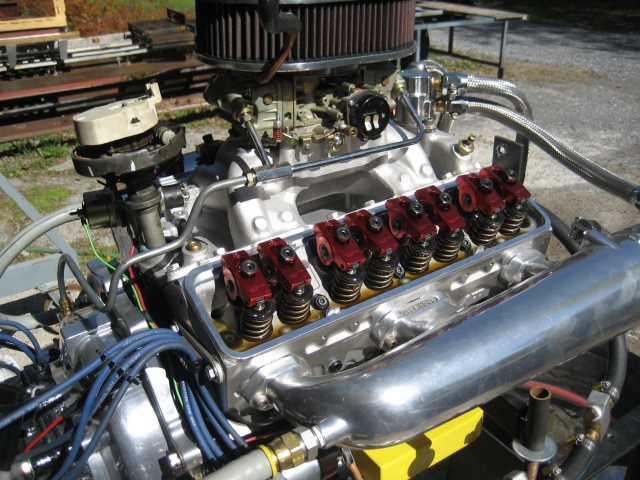

Ignition is controlled by an MSD billet aluminum marine distributor and digital ignition box.

Click to enlarge.



Click to enlarge.

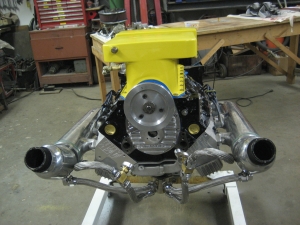

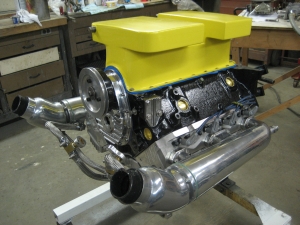

The bottom portion of our custom built 12 quart oil pan received a coat of truck bed liner and was freshened up with a new coat of paint.  (15-APR-2010)

Click to enlarge.



Click to enlarge.



Click to enlarge.



Click to enlarge.





Click to enlarge.

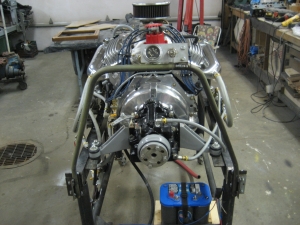

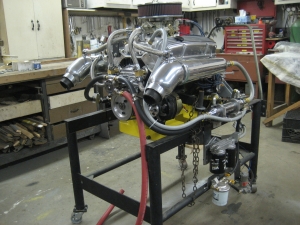

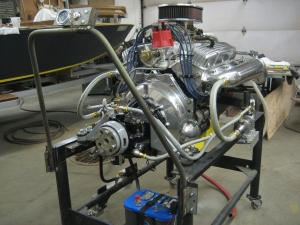

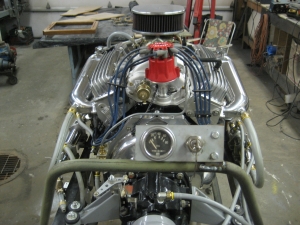

We've moved the engine from the assembly stand to the break-in stand.  The new Edelbrock RPM Air Gap intake manifold adds several inches to the induction system's overall height.  (Click the image for a higher resolution photo).

Click to enlarge.

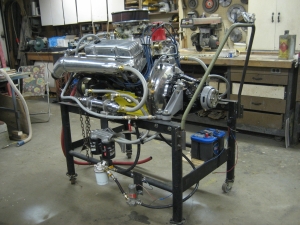

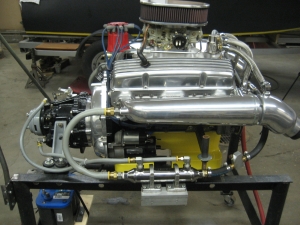

Transmission oil cooler is mounted on the Port side.

Click to enlarge.

A compact Velvet Drive bellhousing mates the engine to Velvet Drive 71C 1:1 ratio hydraulic transmission.

Click to enlarge.



Click to enlarge.



Click to enlarge.



Click to enlarge.

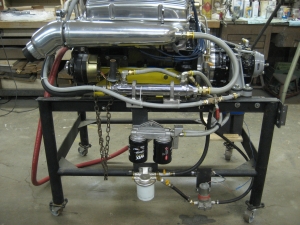

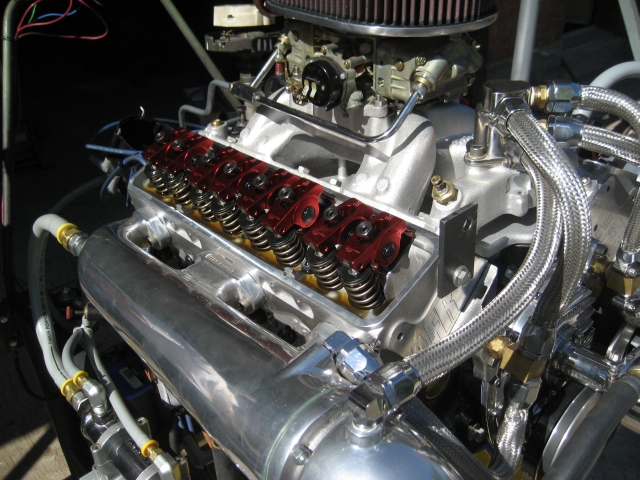

Engine oil cooler and dual remote oil filters are installed on the Starboard side.  We also had to plumb in a Holley marine electric fuel pump, relay and fuel filter.

Click to enlarge.





Click to enlarge.

Click the image for a higher resolution photo.

Click to enlarge.

Click the image for a higher resolution photo.

Click the 'Play' button (>) to see the video.

Glen-L Hot Rod - 355 Startup

If you're installing a marine engine, I recommend ordering Glen Witt's book Inboard Motor Installations.   All aspects of inboard installations are covered in easy-to-read non-technical language.

Inboard Motor Installations by Glen L. Witt and Ken Hankinson.

Inboard Motor Installations by Glen L. Witt and Ken Hankinson.

It's a real honour to have photos of our engine installation on the cover of one of Glen's books.   See the top row and bottom left corner of the book cover.
