Since there was a possibility of building more than one boat in the future, we produced a set
of frame templates to improve construction accuracy and save layout and production time on subsequent boat builds. Click
here to learn more about the frame templates.
(22-FEB-2013)
|

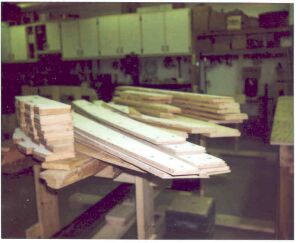

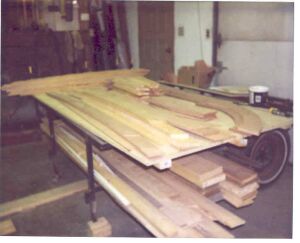

The templates for the bottom frames, laminations and floor timbers
were screwed to Douglas Fir stock and cut on the bandsaw to within
1/8" of the template. Pieces were then trimmed on the router table
using a trim bit.
(26-MAR-2004)
|
All pieces trimmed on the router table equipped with a top-bearing flush trim bit.
(09-APR-2004)
|
Frame and floor timber assembly completed.
(08-JUN-2004)
|
Assembling transom.
|
Epoxy barrier coating frames #1 and #2 . . .
|
#3 and #4 . . .
|
#6, #7 and #8. A total of three coats was applied
with wet sanding between coats to remove any amine blush
from the epoxy.
|
Laminating motor stringers.
|
|
Laying out the motor stringer frame notches.
|
Cutting the motor stringer frame notches.
|
Laying out motor stringer bevel.
|
Cut completed.
|
All frames completed.
|
|
|
