It's important to note that the gasket mating surfaces should not be painted
as the paint film buildup will change the v-drive's internal tolerances.
Related Links :
|

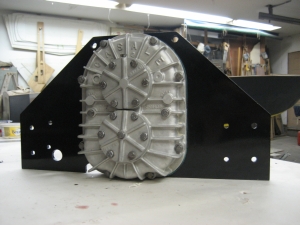

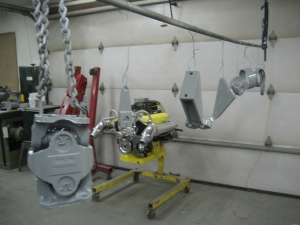

Here's the last of the mechanical components being painted. H-joint assembly,
v-drive shifter, transmission mounts, v-drive flange takeoff, torque tube guards and
transmission takeoff adapter.
(14-APR-2008)
|

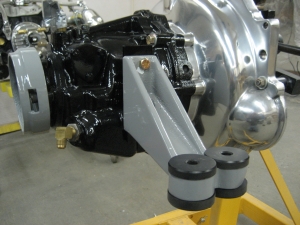

The transmission mounts were installed with grade 8 bolts.
|
The old soft rubber bushings were removed . . .
|

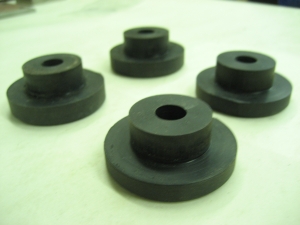

. . . and replaced with custom Delrin bushings. These are more of Steve Flewitt's handiwork !
|
The solid mounts will prevent the engine and transmission from flexing under heavy torque loads.
|

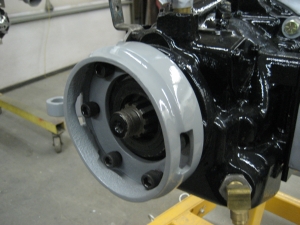

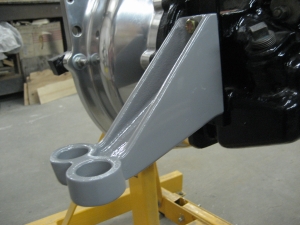

The custom torque tube guard adapter is being installed.
|

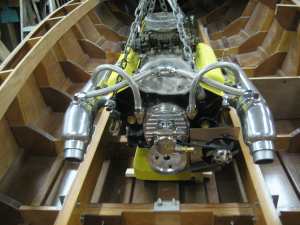

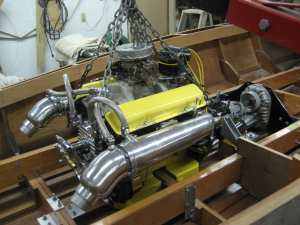

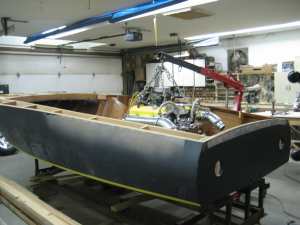

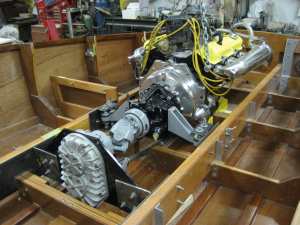

Here's the day I've been waiting for ! Engine, transmission
and v-drive installed with very few issues.
(29-APR-2008)
|
|
We don't have enough clearance between the torque tube guard adapter and the v-drive
take-off hub. The hex-head bolts used to retain the guard will have to be
swapped out for flat head machine bolts.
|
|
|
|

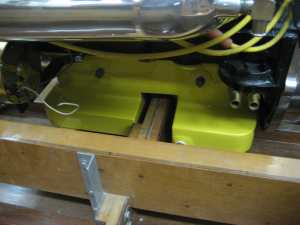

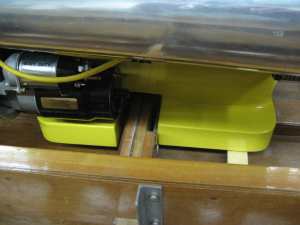

Here's a close-up of the oilpan straddling frame # 2.
|
Oil capacity has been expanded from 4 quarts to 12 quarts.
|

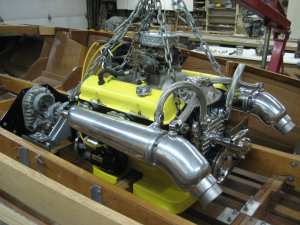

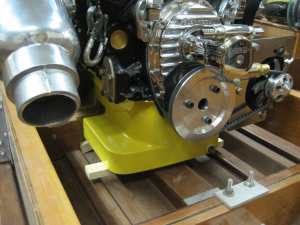

The custom oil pan lowered the engine by 3-1/2". A lot of work, but
the engine is horizontal and nicely nestled into the boat.
|
