Compare the unfaired side (left) to the faired side (right).
|

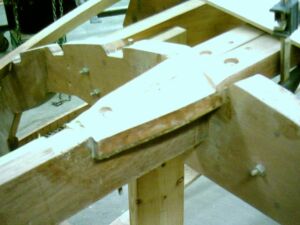

Here you can see unfaired frame # 7 (background) and the
faired frame (foreground).
|

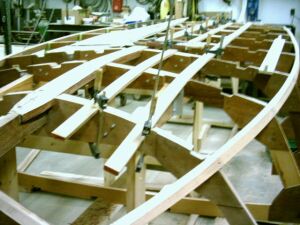

Installing the battens and fairing.
(15-JAN-2005)
|

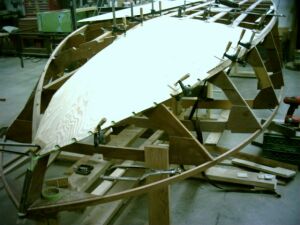

We'll be sheeting with the optional 1/2" botom in the flatter aft area
and two layers of 1/4" in the forward section. A template for the
first bottom layer is being fitted.
(28-JAN-2005)
|

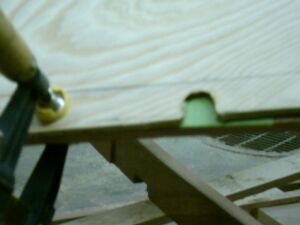

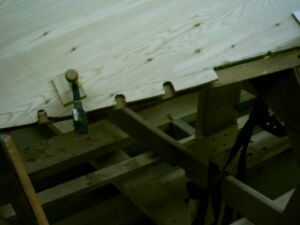

The chine was covered in masking tape and the bottom/side planking
junction was marked with a pencil. Using a pneumatic die grinder
outfitted with a 1/2" deburring rasp makes quick work of cutting
a series of 'mouseholes' every six inches or so along the panel's edge.
Trim the slots back until the transition line is visible.
|
|

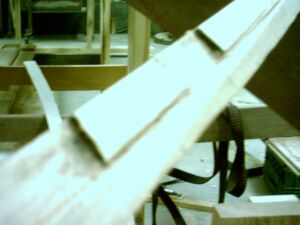

Note the cleft to the right of the last slot. From this point
aft, the bottom planking will be faired flush with the side of
the chine.
|

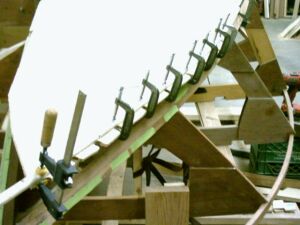

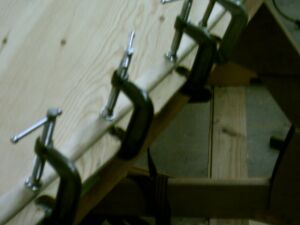

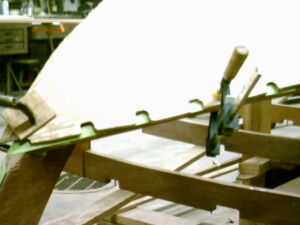

A thin flexible batten is sprung and clamped along the panel's slots
before marking with a pencil.
|
Remove the clamps and trim to size.
|
Several methods for handling thickness variations between side and bottom planking at junctions over the chine log are depicted in the
following diagram. We chose to recess the first layer of bottom plywood into the chine. See the bottom right drawing labelled
Double planking forward portion recessed chine.
Methods for handling thickness variations between side
and bottom planking at junctions over chine log.
Drawing courtesy of Glen-L Marine Designs
|
Chine and sheer installation are discussed in great detail in the book
Boatbuilding with Plywood by Glen L. Witt. The book covers every aspect of the boatbuilding process and provides you with
enough information and confidence to get the job done.
|

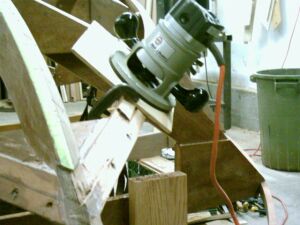

A router was used to recess the forward portion of the chine.
|
|

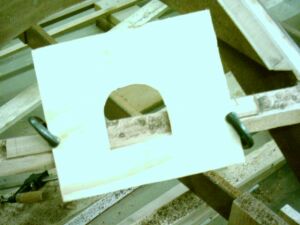

A simple jig made from a piece of 1/4" plywood is used to form
a steady base for the router.
|
|

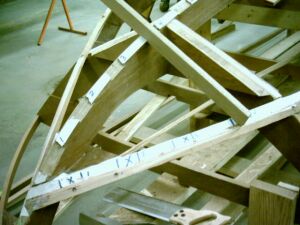

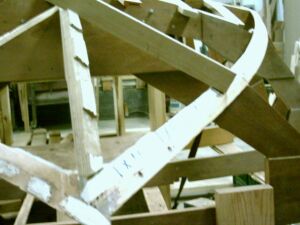

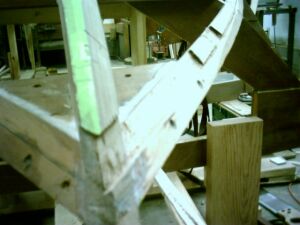

Fairing the stem with the 'Rabl' method.
The following link explains how it's done :
Fairing by the "RABL Method" by Glen L. Witt
|

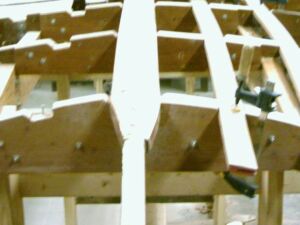

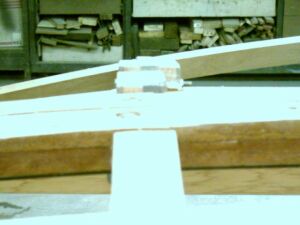

The keel must also be recessed to accomodate the thickness of the plywood. A router is used
(freehand) to fair the surface.
|
