We'll be building the Glen-L 2100 series inboard boat trailer using a single
3500 lb. capacity 4" drop axle equipped with hydraulic brakes.
A pair of 14" 4-hole Dodge rims were sandblasted, primed, and
pressed into service as 'roller' wheels.
(08-JUN-2004)
|
Since we were running short on time, the trailer was built by a welding
shop in Merickville, Ontario. I asked them to fabricate the bare-bones trailer
so I could finish the winch stand, brakes, fenders, bunks and wiring myself.
(07-JUN-2005)
|

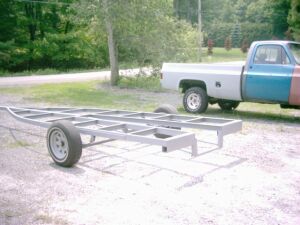

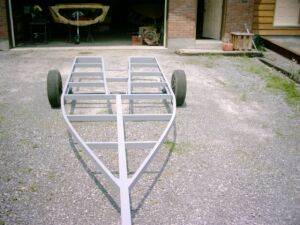

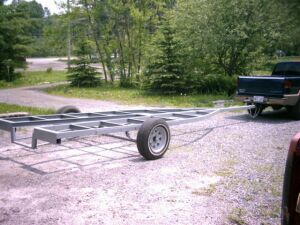

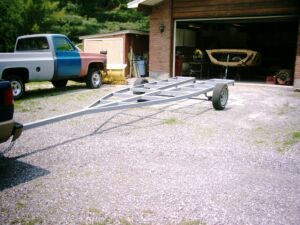

The craftsmanship is readily visible : nice welds, clean joints, gently bowed
side rails and lots of little details add up to an excellent job. We increased
the tongue length by 3' and substituted a piece of heavy duty 3" square tube
for the 3" C-channel called for in the plan.
|
We increased the rear crossmember to 2" x 6" rectangular tube.
This beefs up the rear and will provide more surface area to recess the rear lights.
|
You might want to increase the side rails to 4"
C-channel.
Although this will increase overall weight, it will stiffen up the trailer considerably.
|
|

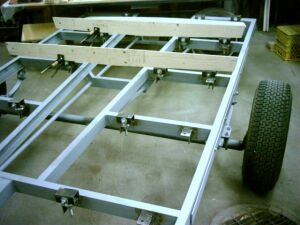

20 bunk support brackets and swivel assemblies were fabricated to support the bunks.
|
|
When the bunk boards are added, this should provide fully adjustable support for the hull.
|

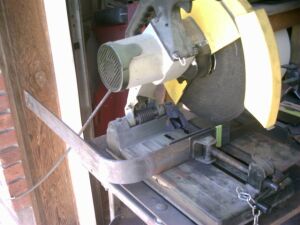

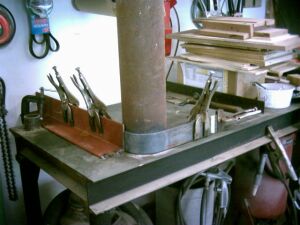

A jig was set up on the welding table to bend the stock required for the fender steps.
(02-AUG-2005)
|
2-1/2" x 3/16" flat bar was heated and bent around the jig.
|
The stock was cut to length on the chop saw.
|

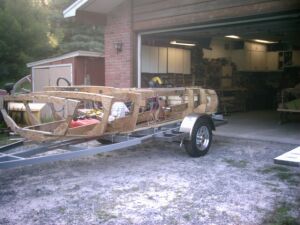

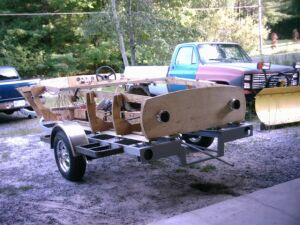

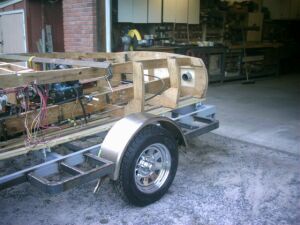

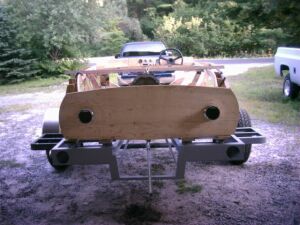

We mocked up the fenders to the fender steps and loaded up the mockup to check for fit.
|
If you click on the picture to enlarge it, you'll see how well the bunk beds conform to the hull.
|
|
|
