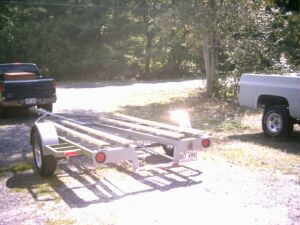

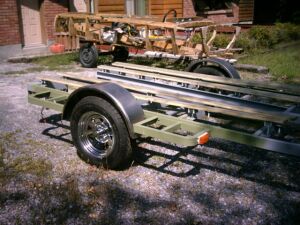

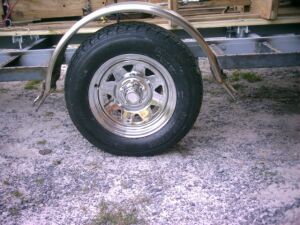

Chrome 8-spoke rims shod with ST205/75R15 rubber finish off the package.
|
|

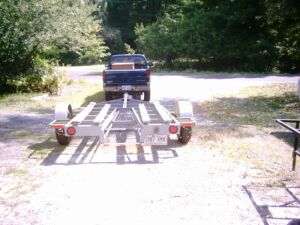

The trailer wiring was completed with 4" LED stop/turn/tail lamps.
(15-AUG-2005)
|

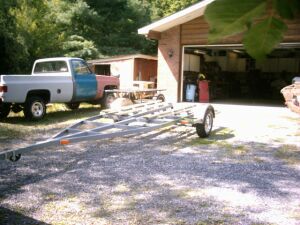

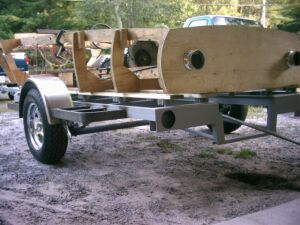

Sealed red clearance lights were mounted to the fender steps.
|
Sealed yellow clearance lights were mounted at the tongue/side rail
junction and on the fender steps.
|
|

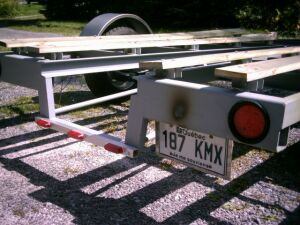

An ID light strip was fabricated using a length of 1" aluminum square tube.
Three 3/4" x 3" red clearance lights were mounted to the tube which was then bolted
to the trailer. A two prong plug will connect to the wiring harness and permit
quick and easy removal of the light bar.
|

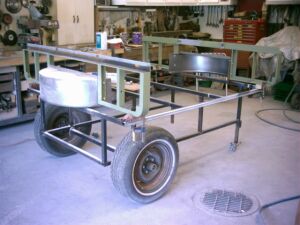

An inner fender skirt was fabricated from 16 gauge steel. A 1" flange on
the bottom of the skirt will provide support for a step filler panel.
|

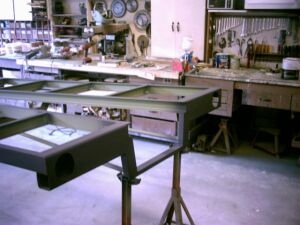

The trailer was disassembled and body filler was used to
smooth out the frame rails.
(26-AUG-2005)
|

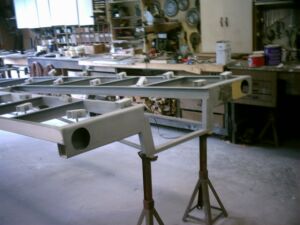

A self-etching primer and a urethane primer-surfacer were sprayed
on the worked-over areas.
|
The primer was block-sanded and prepped for paint.
|

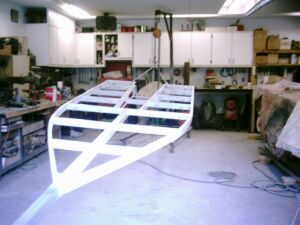

To provide a solid base color for the metallic silver to follow,
a full round of Imron white urethane was applied. Two rounds of
Imron metallic silver were applied once the white had flashed off.
(29-AUG-2005)
|
With the main body of the trailer completed, it's time to finish
up the inner fenders.
|

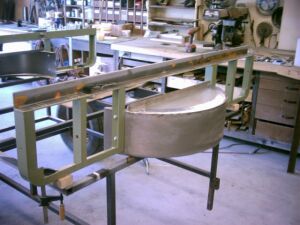

The seam was brazed with an oxy-acetelyne torch and ground smooth.
|
Body filler was applied to the inner fenders and air-filed smooth.
|
